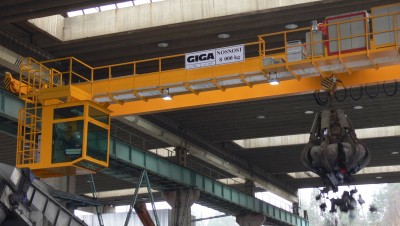

Double Girder Bridge Crane GDMJ 8t/16,5m with cabin and grab for KOVOHUTĚ Příbram
| Year of realization | 2010 |
| Customer | Kovohutě Příbram nástupnická, a.s. |
| Place of installation | Raw-material hall in the area of Kovohutě Příbram nástupnická, a.s. |
| Range of delivery |
Delivery and mounting of a double girder bridge crane, type GDMJ 8t/16,5m with a cabin
Span: 16,5m
Lifting capacity: 8t
Crane group classification: A6
Outdoor design (Ambient temperature: -20 to +40°C, protection class IP65)
Is equipped with a GIGA hoist, type GHF 16000-16-4/2-12M,D (without shiftment of the hook in the whole lifting height range)
Lifting height: 12m
Lifting speed: 0,64...16 m/min
Hoist travel speed: 0...25 m/min
Crane travel speed: 0...80 m/min
Control: Air-conditioned crane cabin with a rotary crane-armchair
The crane is equipped with the GIGAtronic TWD device for monitoring of its operation state in according with ČSN ISO 12482-1
The crane is equipped with an external display for the displying a load weight (technological weighing)

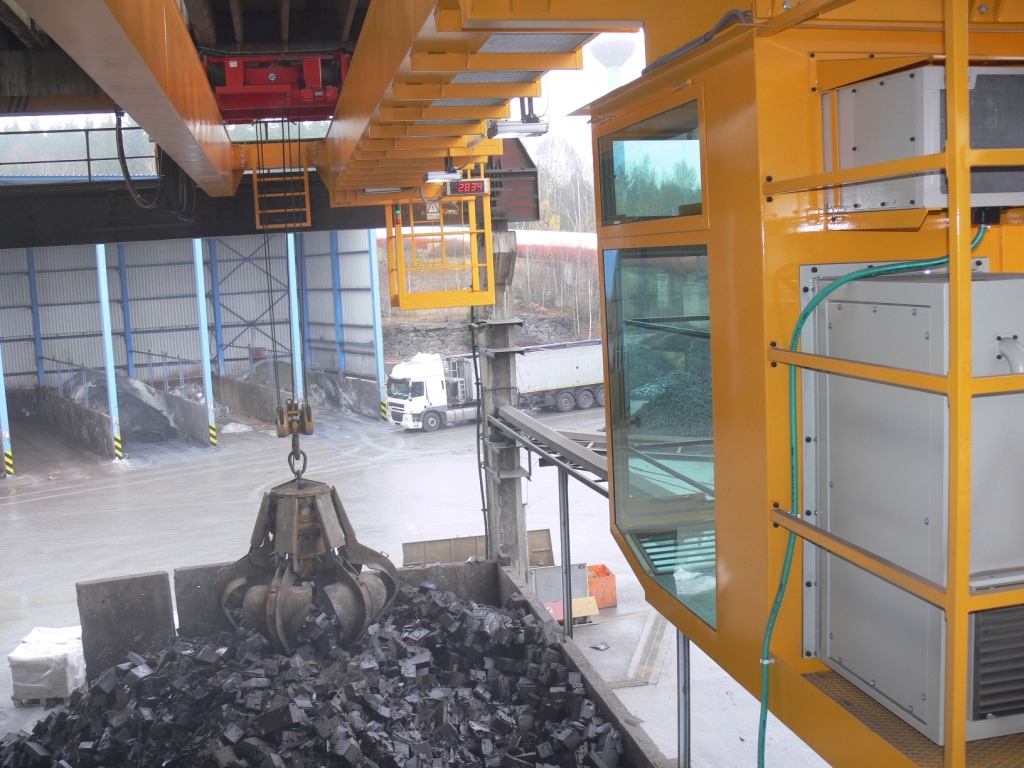

The crane is used with a grab
|
