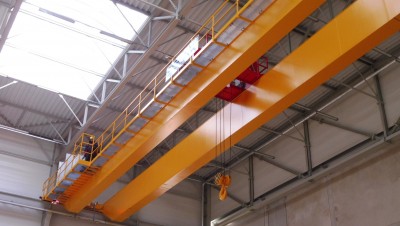

Double Girder Bridge Crane GDMJ 20t/32,6m for Constellium Extrusions Děčín
| Year or realization | 2018 |
| Customer | Constellium Extrusions Děčín s.r.o. |
| Place of installation | Production hall of Constellium Extrusions Děčín s.r.o., Děčín |
| Range of delivery |
Delivery and mounting of a double girder bridge crane, type GDMJ 20t/32,6m
Span: 32,6m
Lifting capacity: 20t
Crane group classification: A5
Operation temperature: -5 to +55°C
Is equipped with a GIGA hoist, type GHM 40000-20-4/2-24M,D (without shiftment of the hook in the whole lifting height range)
Lifting height - max. possible / real, above the floor: 24m / 13,4m
Liftting speed: 1...9 m/min
Hoist travel speed: 0...25 m/min
Bridge travel speed: 0...32 m/min
Control: radio with two-position joysticks, with a sling for the fixation around a waist
The electric switchboard is equipped with an air conditioning unit for ambient temperature up to +55°C.
The crane is equipped with an external display for the displying a load weight (technological weighing)
|
Nakládka a expedícia nadrozmerného žeriava GDMJ 20t/32,6m
Montáž a skúška žeriava GDMJ 20t/32,6m
